Cod: 4194   P/N: 911-7D45-002   EAN: 4719072912475
visto 2 veces en las últimas 24 horas
Añadir a seguimiento
0  € (iva no incluido)
No disponible

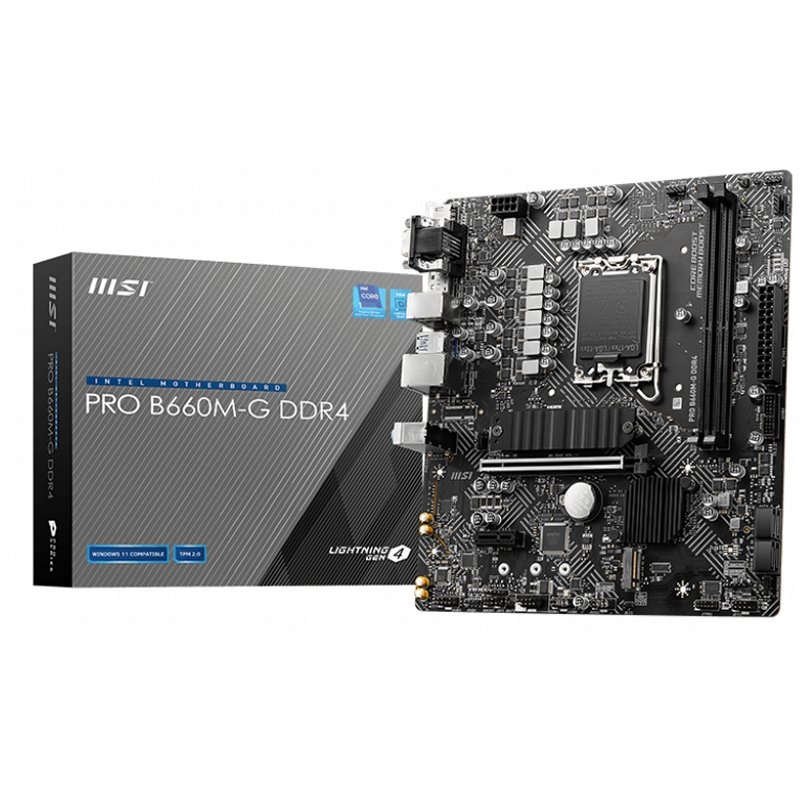

Supports 12th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1700

  1. Please go to to get the newest support status as new processors are released.


Intel® B660 chipset


  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports ADL-s 1R 2133/2666/2933/3200 MHz 1
    • 1DPC 1R Max speed up to 4600+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer for more information on compatible memory.

Expansion Slot

  • 1x PCIe 4.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x1 slot (from B660 chipset)

Onboard Graphics

  • 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
  • 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.


Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio


1x Realtek® RTL8125BG 2.5Gbps LAN controller


  • 4x SATA 6Gb/s ports (From B660 chipset) 1
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 chipset) 1
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Technology
  • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  1. Intel® Optane Memory Ready. Before using Intel®® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.


Intel® B660 Chipset

  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
  • 2x USB 2.0 Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors

Form Factor

  • M-ATX Form Factor
  • 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)

BIOS Features

  • 1x 256 Mb flash
  • ACPI 6.4, SMBIOS 3.4
  • Multi-language

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connector (support additional 4 USB ports)
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectorx
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x JRGB
  • 1x Tuning Controller Connector
